Introduction

With the advent of motion controls and touchscreens, the implementation of gestures and gesture recognition has become increasingly popular in game development. Gestures can bring a new level of interactivity and immersion to a game, allowing players to physically interact with the virtual world in a more intuitive and natural way. The implementation of gesture recognition in game development is explored here. This article also provides some tips and examples to help you get started using the Unity game engine.

Person with VR headset drawing in the air — Gesture recognition can be integrated into VR games and increases immersion for the player

Exploring the different types of gesture recognition

Gestures are physical movements performed by the player that are recognized by the game to trigger certain actions or events. Gesture recognition is the process of identifying and interpreting these movements, often using sensors such as accelerometers or cameras. There are many different types of gestures, from simple swipes and taps to more complex movements such as shaking or rotating the device. Effective gesture recognition algorithms must be able to distinguish between intentional gestures and accidental movements and recognize gestures at different speeds and angles. Some of the common approaches are

Vision-based recognition: utilizes cameras or depth sensors to capture and interpret player movements. This technique requires image processing and machine learning to recognize and classify gestures.
Sensor-based recognition: Relies on specialized hardware such as motion controllers or wearable devices to track and interpret gestures. These devices provide precise and accurate motion data.

A person is sitting in front of two dogs, which are also sitting. The person has dog treats in their hand. — Gestures already exist in many areas. For example, when training dogs.

The power of gesture recognition: inspiring examples from various industries

Example 1: In the game “Fruit Ninja”, players use their fingers to swipe across the screen and cut flying fruit. The game recognizes different types of swiping movements, such as vertical or diagonal, to determine the direction of the cut. The implementation of gesture recognition creates a more immersive and intuitive gaming experience that feels more natural than simply tapping the screen.

Example 2: In “Angry Birds VR: Isle of Pigs”, players use VR goggles and controllers to physically interact with the game world. To shoot a bird, the player pulls back the slingshot and releases it, mimicking the movement of pulling back a real slingshot. By implementing gesture recognition, the game can precisely track the player's movements and translate them into in-game actions.

Example 3: In “Dance Dance Revolution”, players step on a dance pad to follow the instructions on the screen and collect points. By recognizing the specific movements of the player's feet, the game can accurately assess whether the player is following the rhythm and performing the correct steps. The game's gesture recognition algorithms can recognize a variety of movements, from simple steps to complex dance routines.

Mastering gesture recognition: important tips for seamless integration

Tip 1: When implementing gesture recognition, it is important to consider the limitations of the hardware and sensors used. For example, a smartphone accelerometer may not be as accurate as a dedicated motion controller and may have difficulty distinguishing intentional gestures from accidental movements.

Tip 2: Gestures should be intuitive and easy to learn, but also provide enough variety to keep gameplay interesting. Consider providing visual or audio feedback when a gesture is successfully recognized to reinforce the player's actions.

Tip 3: Gesture recognition can also help to improve accessibility in games. For example, players with limited mobility may find it easier to perform simple gestures such as tapping or swiping than complex button combinations.

Tip 4: Choosing the appropriate gesture recognition technology for the game is crucial. Consider factors such as the target platform, budget and desired level of precision. Some popular options are:

Microsoft Kinect: A vision-based gesture recognition system that captures body movements with a depth camera. Kinect offers a variety of APIs and libraries for game developers.
Leap Motion: A sensor-based recognition system that tracks hand and finger movements in three-dimensional space. Leap Motion offers a compact and affordable solution for gesture control.
Customized solutions: If you have specific requirements or prefer a customized approach, you can develop your own gesture recognition system using computer vision libraries such as OpenCV or machine learning frameworks such as TensorFlow.
Plugins for game engines: There are many plugins available in the game engine stores. One example of a gesture recognition plugin is “PDollar” in the Unity Asset Store for the Unity game engine.
Implementing gesture recognition involves integrating the selected technology into your game's code. Although the exact steps vary depending on the technology and platform, some general guidelines apply:

Set up gesture tracking:

Configure the gesture recognition system to track and capture the relevant body movements or hand gestures.
Gesture calibration: Perform calibration routines to ensure accurate and consistent gesture recognition. This step is important to account for variations in lighting conditions, player height or device placement.
Gesture classification: Use the provided APIs or libraries to classify the captured gestures and trigger the appropriate in-game actions. Here is a small code snippet from the Unity Engine with the PDollar plugin for a very simple gesture recognition system:

TIME FOR A LEVEL-UP?

From concept to completion, we're happy to help every step of the way.

LET'S GO

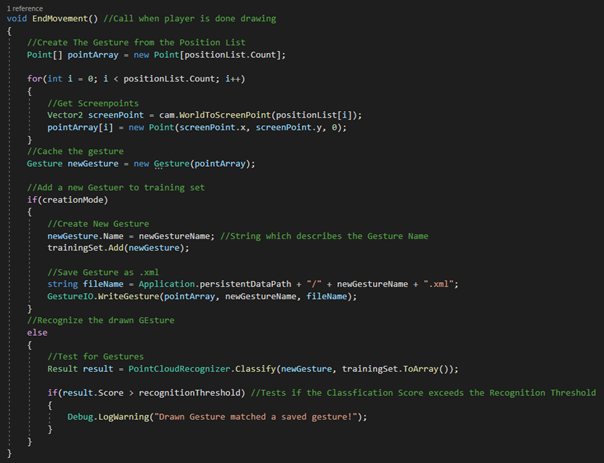

Code snippet of a simple gesture recognition with the PDollar package in Visual Studio

A rough step-by-step guide to implementing gesture recognition in Unity

1. Choose the Right Gesture Recognition Solution

Select a gesture recognition system that suits the needs of your game. Consider factors like platform compatibility, supported gestures, hardware requirements, and ease of integration. Note 4 (hardware configuration) may also influence your decision.

2. Set Up the Unity Project

Create a new Unity project or open an existing one where gesture recognition will be added. Ensure that you are using the correct Unity version and have installed any necessary SDKs or plugins that match your chosen gesture recognition solution.

3. Import the Gesture Recognition SDK

If you are using an external SDK, import it into your Unity project. This typically involves downloading the SDK from the official website or the Unity Asset Store, and then importing it via the Unity Package Manager. Make sure all dependencies are correctly installed.

4. Configure the Hardware (if required)

If your solution relies on external hardware like Kinect or Leap Motion, connect the device and confirm that Unity detects it. Follow the manufacturer’s documentation to install drivers and configure the device properly.

5. Capture Gesture Data

Depending on the SDK or plugin, gesture data must be captured for processing. This may include accessing raw sensor input or using built-in APIs that provide pre-processed gesture information.

6. Implement Gesture Recognition Logic

Now implement the logic that processes and responds to user gestures. This typically includes the following steps:

Initialize the gesture system: Set up the necessary objects, components, or scripts that interface with the SDK or plugin.
Capture input data: Collect input from the device—this may be raw or processed depending on the SDK.
Define gestures: Identify and describe the specific movements (e.g., hand, body, or finger) that will be recognized in your game.
Classify gestures: Use the SDK's algorithms or APIs to classify the captured gestures and map them to in-game actions.
Trigger in-game actions: Link recognized gestures to actual gameplay events such as triggering animations, interacting with UI elements, or manipulating objects.

7. Test and Refine

Thoroughly test the gesture system to ensure accurate recognition and stable performance. Refine the recognition logic, calibrate the system if necessary, and minimize false positives or missed inputs to improve reliability.

8. Provide User Feedback

Give players clear visual or audio feedback when gestures are recognized. This reinforces the connection between their movements and in-game actions, and significantly enhances the overall experience.

The bottom line on gesture recognition in game development

Gesture recognition technology provides game developers with a powerful tool to enhance interactivity and immersion in their projects. By allowing players to use natural body movements to interact with games, gesture recognition opens up a whole new world of possibilities for immersive gaming experiences.

In this blog post, we've explored the process of adding gesture recognition to game development projects, focusing on Unity as a development platform. We discussed the importance of understanding the basics of gesture recognition, choosing the right technology, planning and designing gesture interactions, and implementing gesture recognition in Unity. Through thoughtful design, intuitive gestures and appropriate feedback mechanisms, developers can create immersive game experiences that respond to players' natural movements and gestures.

Gesture recognition has already been successfully implemented in various games such as Dance Central and Fruit Ninja, demonstrating the potential for improved gameplay mechanics and player engagement. As the technology advances, the possibilities of gesture recognition in game development will continue to expand, offering developers exciting opportunities to push the boundaries of interactivity.

Whether you're developing for virtual reality, mobile platforms or traditional consoles, consider integrating gesture recognition into your game development toolkit. By embracing this technology and exploring its creative potential, you can captivate players with a unique and immersive gaming experience that goes beyond traditional input methods.

Embrace the power of gestures and let your imagination shape the future of game development!
